Data types
On the data types page you can view, add and remove data types in the current project.
HOW TO:
Rename a data type
To rename a data type, click on the three dots to open its info menu. Then click Edit.
Set the name you need and click Update.
Delete a data type

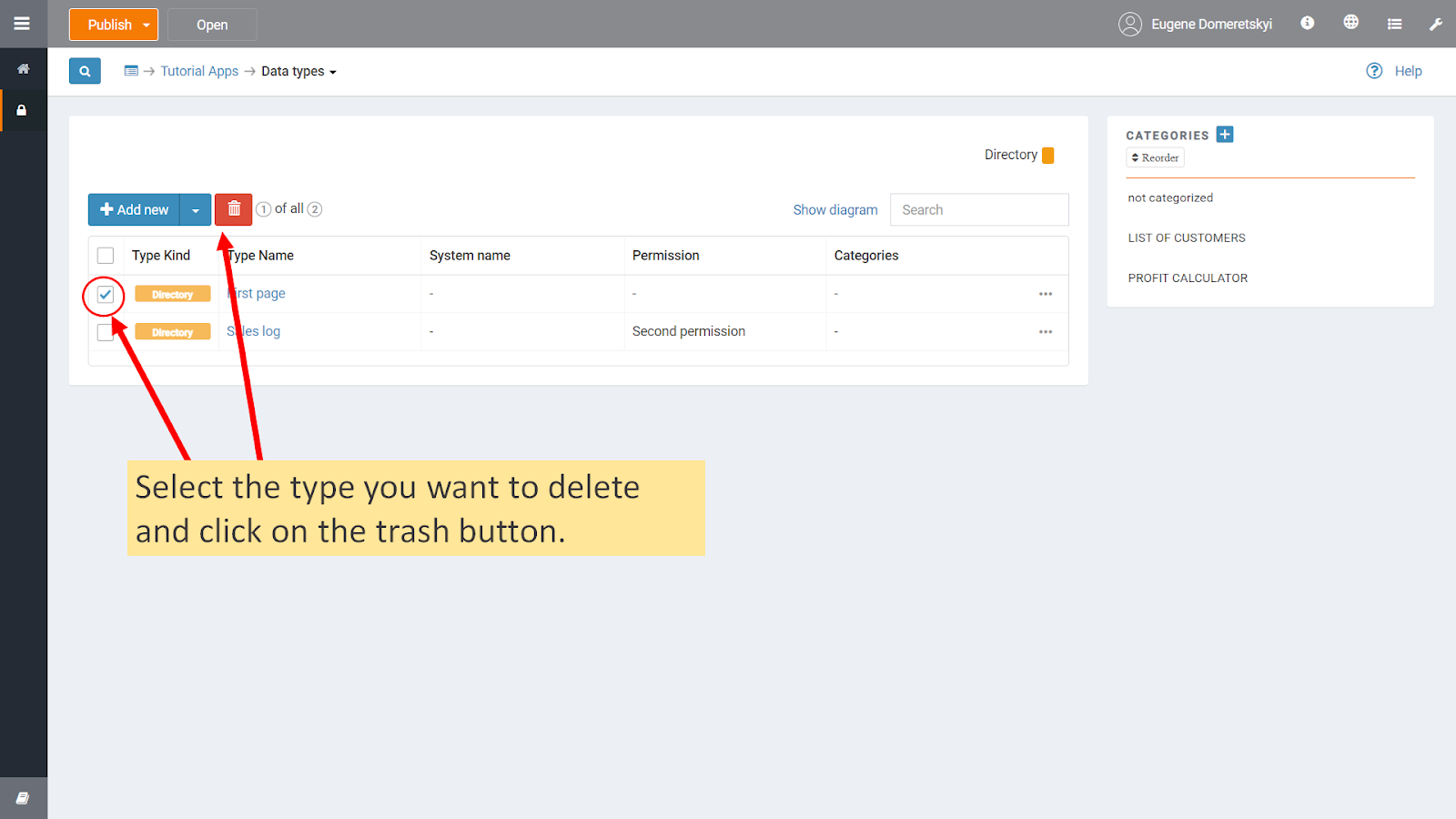

To delete a data type, put ticks near the data types you need to remove and then click on the red trash button.
You need to confirm the delete operation:
View relationship diagrams
On the data types page, click on the Show diagram link.
You can see automatically created entity-relationship diagrams.
Add a system name to a type
System names allow you to create a readable representation, reference to a data type. The default system name is a unique ID assigned during creation. System names are used in the templates generation or quickly find a data type in the code blocks.
To set a system name, click on the three dots near the data type and select the Edit system name option.
Specify the correct system name and click Update:
Create a new category
On the right side of the data types page:
1) Click on the plus to add a new category.
2) Name it and click Create.
Add a category to a data type

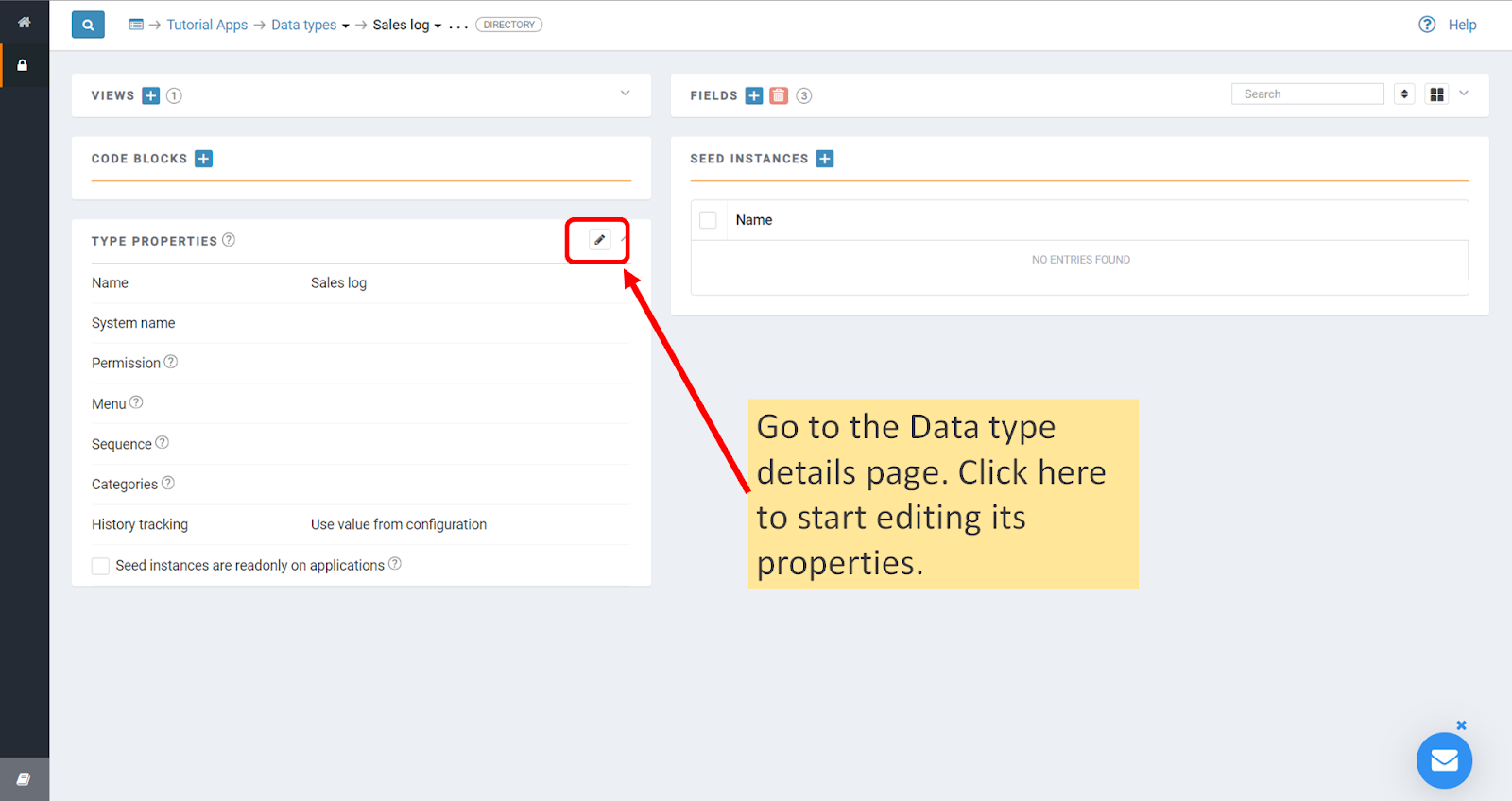

From the data type details page, click on the pencil icon to start editing type properties.
Select the categories you need.
You can add multiple categories for a data type.
